Gun Drilling Machine for Center hole

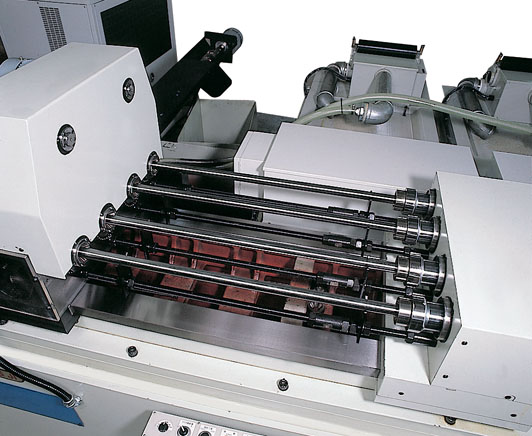

Gun drilling machine (SLY-1000D)

Model : SLY-1000D

This type of machine is equipped with 4 spindles and the hydraulic clamping system for mass production. The max. drilling length is 1000mm.

This machine is designed for drilling center long-holes on the round bars or shafts.
Four spindles design and hydraulic clamping system enhance the efficiency in production many times.
The drilling capacity is from Ø5mm to Ø20mm and the max. drilling length is 1000mm.
It is equipped with NC and HMI and is user-friendly for operators. CNC controller is also available.
Tooling and component are rotating in drilling process to enhance the accuracy of hole concentricity.
